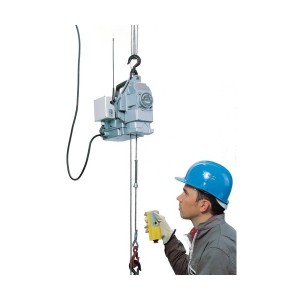

Tractel Minifor Electric Hoist
Compact, portable hoist designed for lifting and pulling loads over long distances using unlimited wire rope length.
Key Features
-
SWL capacities: 100 kg, 300 kg, or 500 kg
-
Compatible with Maxiflex wire rope (unlimited length)
-
Suitable for various lifting and pulling configurations
-
Operated via pushbutton control/ Wireless pendant control
- Powererd by 110v
Optional Add-ons
-
Wireless remote control
-
Wire rope reeling device (up to 40 m)
-
Sheave blocks to increase load capacity
Design & Convenience
-
Lightweight aluminium alloy housing
-
Built-in carrying handle
-
Adjustable upper and lower limit switches
-
Quick and easy installation
-
Available in single-phase and three-phase versions
Applications
Ideal for use across multiple industries where portability, long lifting range, and flexibility are required.
Tractel Minifor Electric Hoist Specification
| Specification | TR30 | TR50 |
|---|---|---|
| Product Model | TR30 | TR50 |
| Type | Material Lift Only | Material Lift Only |
| Product Brand | Tractel | Tractel |
| Fuel Type | Electric | Electric |
| Safe Working Load (t) | 0.3 | 0.5 |
| Wire Rope Diameter (mm) | 6.5 | 6.5 |
| Weight (kg) | 21 | 33 |
| Width (mm) | 230 | 230 |
| Depth (mm) | 356 | 519 |
| Height (mm) | 427 | 479 |
| Input Power (W) | 250 | 1100 |
| Voltage (V) | 110 | 110 |
| Phase | 1 | 1 |
| Plug Type (Amps) | 16 | 16 |
| IP Rating | IP55 | IP55 |
| IP Rating (Plug) | IP44 | IP44 |
| Lifting Speed (m/min) | 5 | 7 |
| Sound Power Level (dB[A]) | 85 | 90 |
